Sketch it. Watch it become a wall.
Draw your relief, trace a photo, or start from a generative preset — the designer turns it into a buildable rib wall with a live 3D preview and a ballpark price, ready to send to our shop.
17 presets · 8–120 ribs · 1–8" relief · true-spacing buildable layoutsDesign your wall, live
Everything updates as you work: the sketch drives the relief, the layout math keeps it buildable, and the estimate follows your choices. When it feels right, send it straight to the shop as a work order.
Anatomy of a rib wall
01 · Density
8 ribs per linear foot
Every wall is built from contoured 3/4″ ribs with matched gaps — eight to the linear foot, so the rhythm reads the same at any width.
02 · Depth
4–10″ of relief
Shadow is the material. The deeper the relief, the more the surface moves with the light — from a subtle ripple to dramatic, sculptural dimension.
03 · Tier
Deep vs. standard relief
Two ways to cut it: deep relief for maximum drama, standard relief for refined texture and better material yield. You choose at the proof stage.
8 ribs · 3/4″ rib + gap · 1 linear foot
Relief depth · 4″ → 10″
Up to 10″ depth
Deep Relief
Maximum sculptural impact. High shadow variance and dramatic depth. As seen in the studio installation.
Up to 6″ depth
Standard Relief
Refined dimensional texture with improved material yield, ideal for residential and mid-scale commercial.

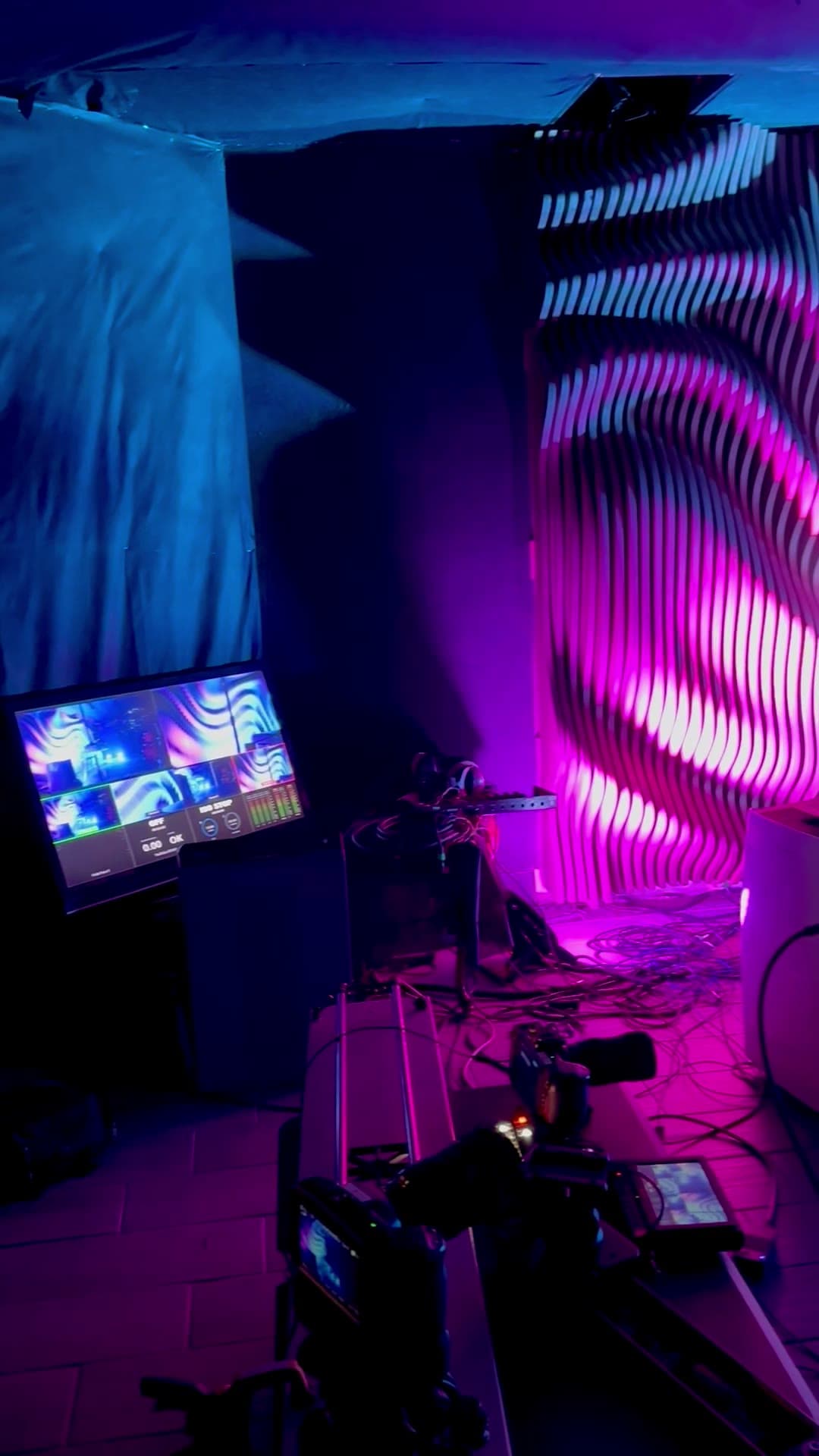

A 15-foot, 114-rib studio wall.
Our anchor portfolio piece, a 15-foot, 114-rib parametric MDF installation for a recording studio. Spec: 15 LF · 8 ft · deep relief. Fabrication value $7,925, full project $9,750.
Up to 10″ shadow depth at 8 ribs / linear foot — the same parametric system the designer builds for your wall.The work, in motion

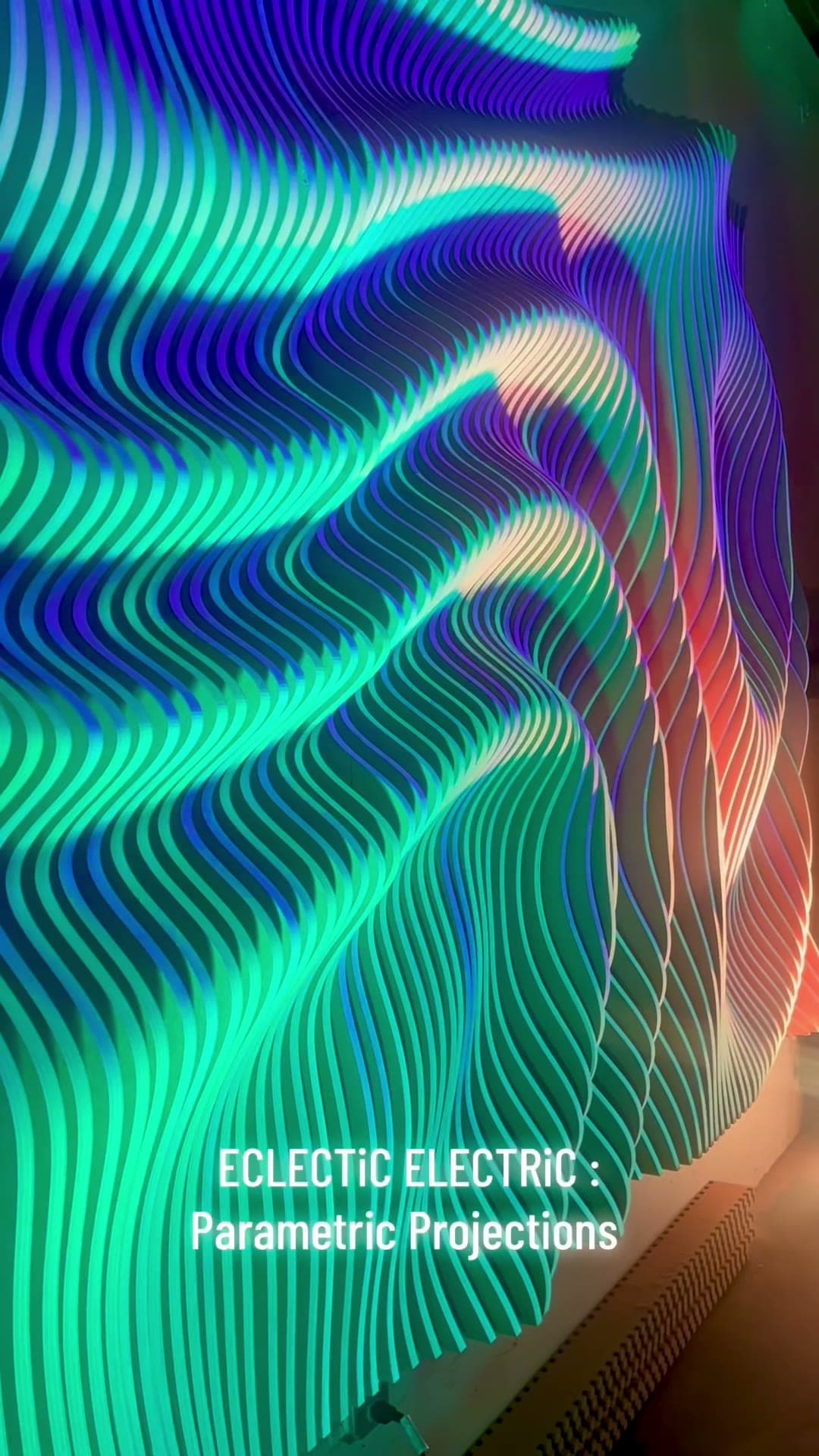

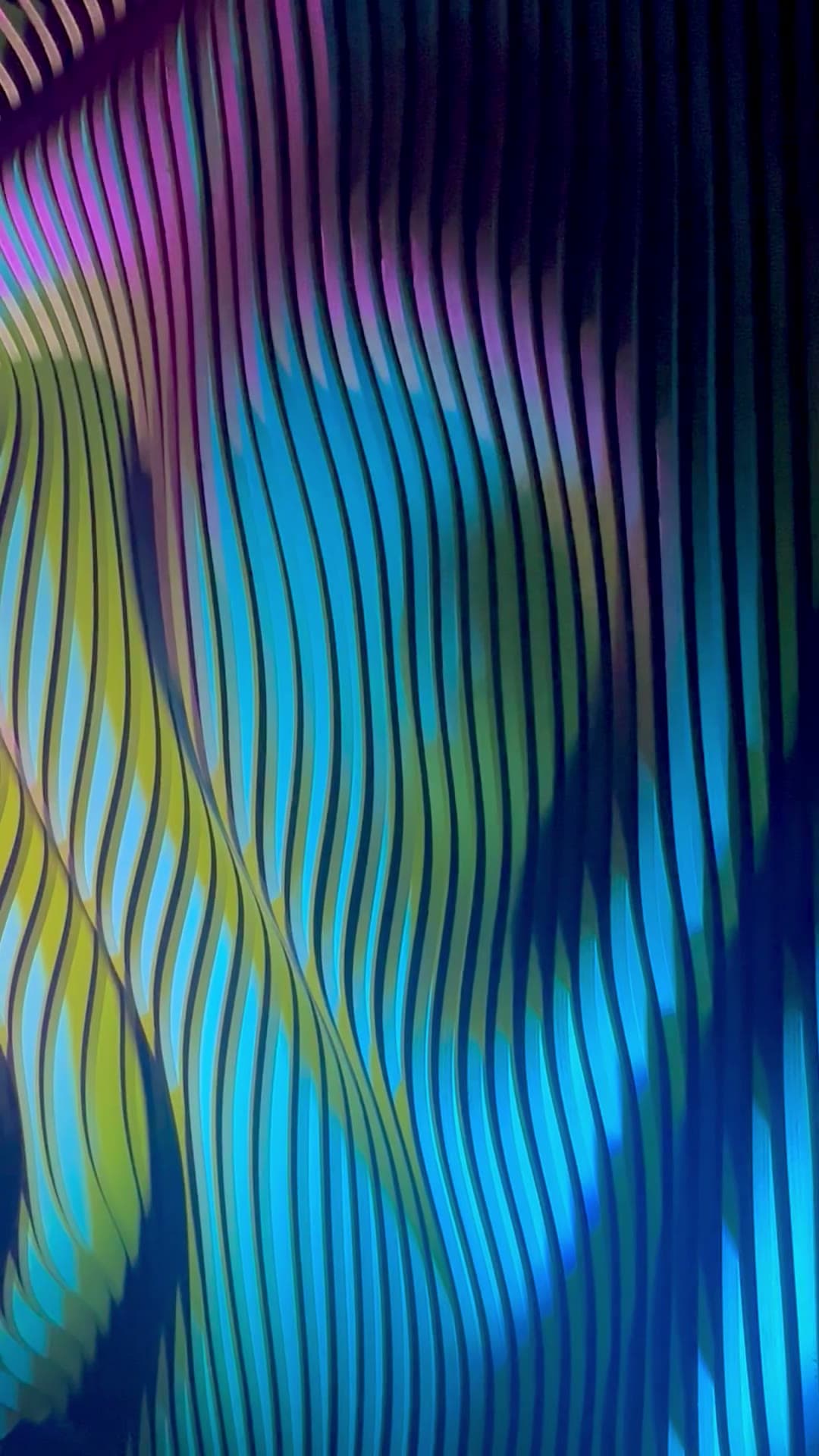

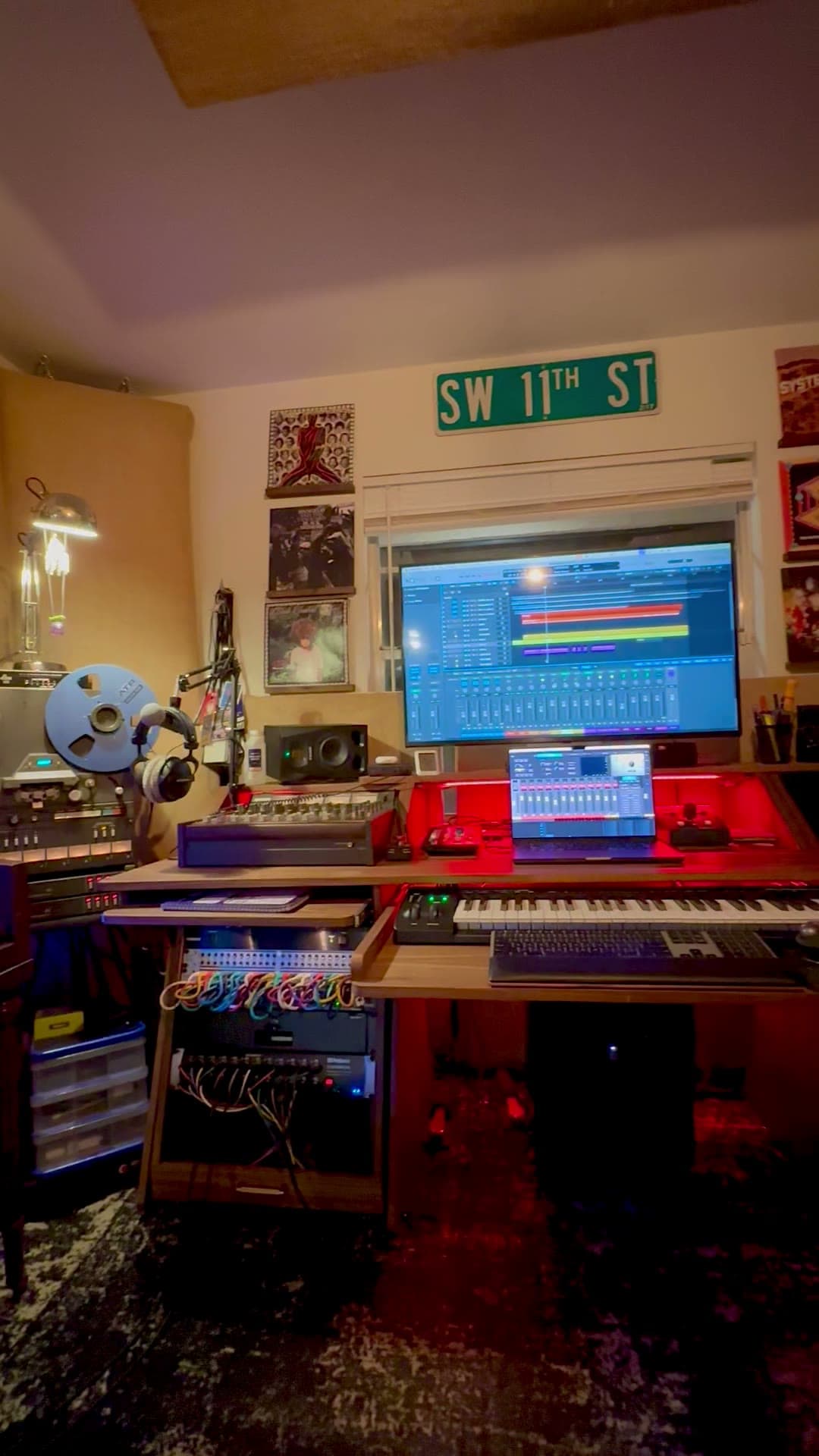

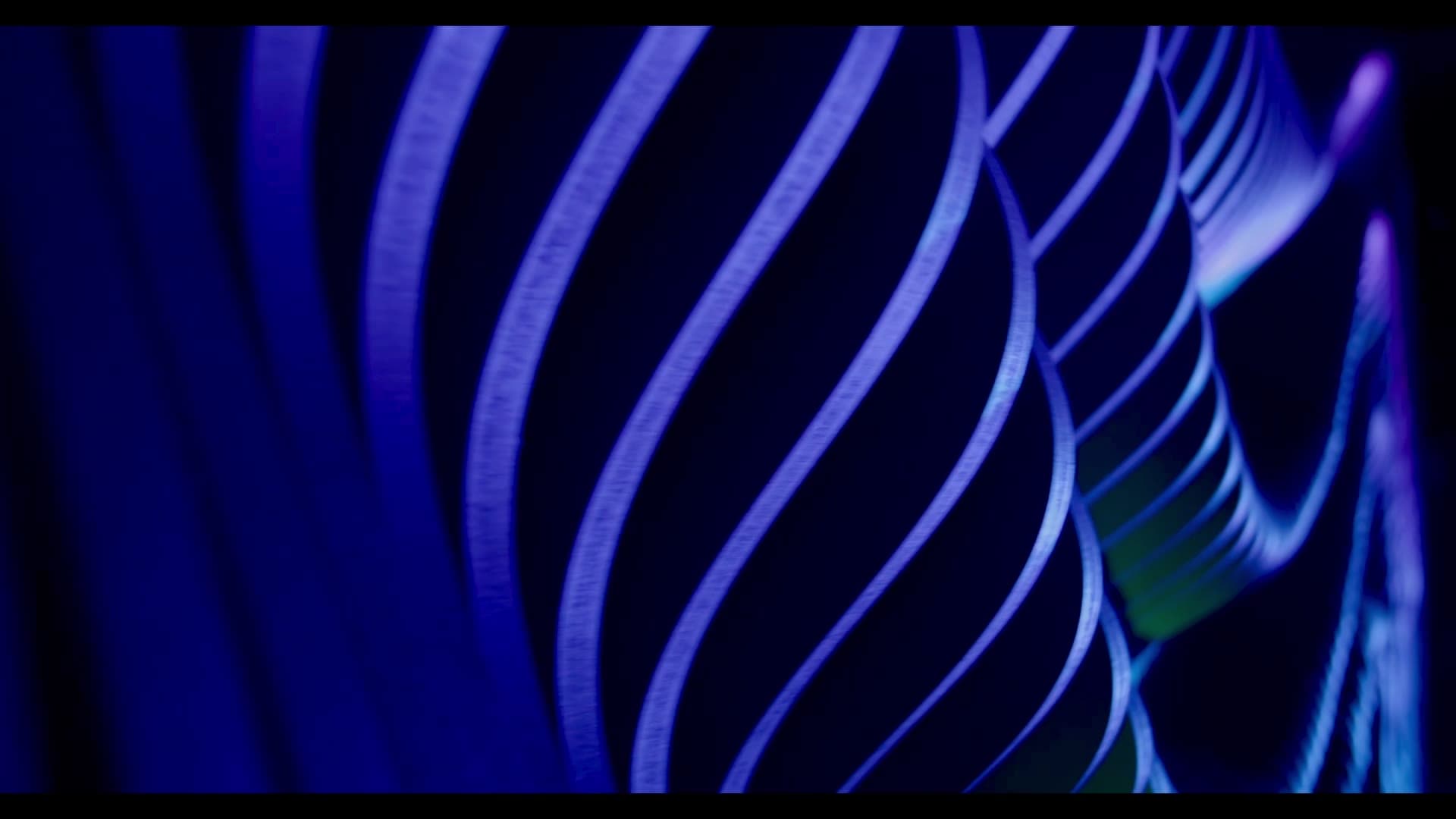

Projection-mapped rib walls, deep-relief close-ups, and the bench where it all gets built — straight from the shop and the install floor.
The full pricing schedule
Transparent, client-approved rows for fabrication, paint, and installation. Nothing hidden — the designer's ballpark estimate is anchored to exactly these tables, and these rows are what a firm quote is written from.
Fabrication (unpainted MDF)
| Width | Ribs | Sheets | Labor hrs | Material | Fabrication | $/LF |
|---|---|---|---|---|---|---|
| 4 LF | 32 | 8 | 12.5 | $400 | $2,325 | $581 |
| 6 LF | 48 | 12 | 17.7 | $600 | $3,350 | $558 |
| 8 LF | 64 | 16 | 22.9 | $800 | $4,375 | $547 |
| 10 LF | 80 | 20 | 28.2 | $1,000 | $5,375 | $538 |
| 12 LF | 96 | 24 | 33.4 | $1,200 | $6,400 | $533 |
| 16 LF | 128 | 32 | 43.9 | $1,600 | $8,425 | $527 |
| 20 LF | 160 | 40 | 54.3 | $2,000 | $10,475 | $524 |
Paint upgrade
| Width | Tier A | Tier B | A+B |
|---|---|---|---|
| 4 LF | $150 | $75 | $250 |
| 6 LF | $225 | $125 | $350 |
| 8 LF | $325 | $150 | $475 |
| 10 LF | $400 | $200 | $600 |
| 12 LF | $475 | $250 | $725 |
| 16 LF | $625 | $325 | $950 |
| 20 LF | $800 | $400 | $1,200 |
Installation bandswithin 60 mi
| Width | Crew | Schedule | Price |
|---|---|---|---|
| 4–6 LF | 3 installers | Half day | $600 |
| 8–12 LF | 3 installers | Full day | $900 |
| 16–20 LF | 3 installers | Full day + | $1,200 |
Horizontal accent pieces install in a half day at a flat $600. Outside the radius, installation is quoted per site.
What's Included
Fabrication includes parametric design, digital proof for approval, CNC production, finish sanding, and hanging hardware. Modular panel construction standard on installations over 8 LF.
Design Tier Selection
Relief depth is confirmed during design and shown via digital proof before any material is cut. Deep relief maximizes visual drama; standard relief improves material efficiency without sacrificing dimensional character.
Payment
50% deposit to begin production. Balance due before delivery or installation. Design proof within 48 hours of deposit. Net-30 available for established trade accounts.
Lead Time
7–14 business days from approved proof. Rush under 5 days: +30% fabrication. Intermediate widths prorated. Custom profiles, curved installations, and logo integration quoted individually.
Ready to spec your wall?
Design it above and send it straight to the shop — or send us your dimensions and we'll return a digital proof within 48 hours of deposit.
